20天狂宴Pytorch-Day2

GitHub链接

图片数据建模.

准备数据

cifar2 数据集包含 5000 张飞机 airplane 照片和 5000 张机动车 automobile 照片, 任务目标是训练一个模型区分 airplane 和 automobile 两种图片.

在 Pytorch 中构建图片数据管道通常有两种方法:

• 使用 torchvision 中的 datasets.ImageFolder 读取图片, 然后用 DataLoader 并行加载
• 通过继承 torch.utils.data.Dataset 实现用户自定义读取逻辑, 然后用 DataLoader 并行加载

本文介绍第一种方法.

import torch
from torch import nn
from torch.utils.data import Dataset,DataLoader
from torchvision import transforms as T
from torchvision import datasets

transform_img = T.Compose(	# 可以把多个图像处理步骤打包为一个流程, 如旋转裁切, 这里只有一步转换为tensor
    [T.ToTensor()])	# 把PIL图片或Numpy数组转换成tensor, 并把像素值压缩为[0, 1]的浮点数
def transform_label(x):	# 处理标签, 把x转换为一维浮点数tensor
    return torch.tensor([x]).float()

ImageFolder 是 torchvision 里最常用的数据集加载工具之一, 需要准备一个文件夹, 每个子文件夹的名字就是类别名, 如:

cifar2/train/
    0_airplane/
    1_automobile/
cifar2/test/
    0_airplane/
    1_automobile/

ImageFolder 会自动扫描这些子文件夹, 给每个类别分配一个编号, 然后返回 (图像, 标签).

使用方法如下:

ds_train = datasets.ImageFolder("./eat_pytorch_datasets/cifar2/train/",
            transform = transform_img,target_transform = transform_label)
ds_val = datasets.ImageFolder("./eat_pytorch_datasets/cifar2/test/",
            transform = transform_img,target_transform = transform_label)

用 DataLoader 封装.

dl_train = DataLoader(ds_train,batch_size = 50,shuffle = True)
dl_val = DataLoader(ds_val,batch_size = 50,shuffle = False)

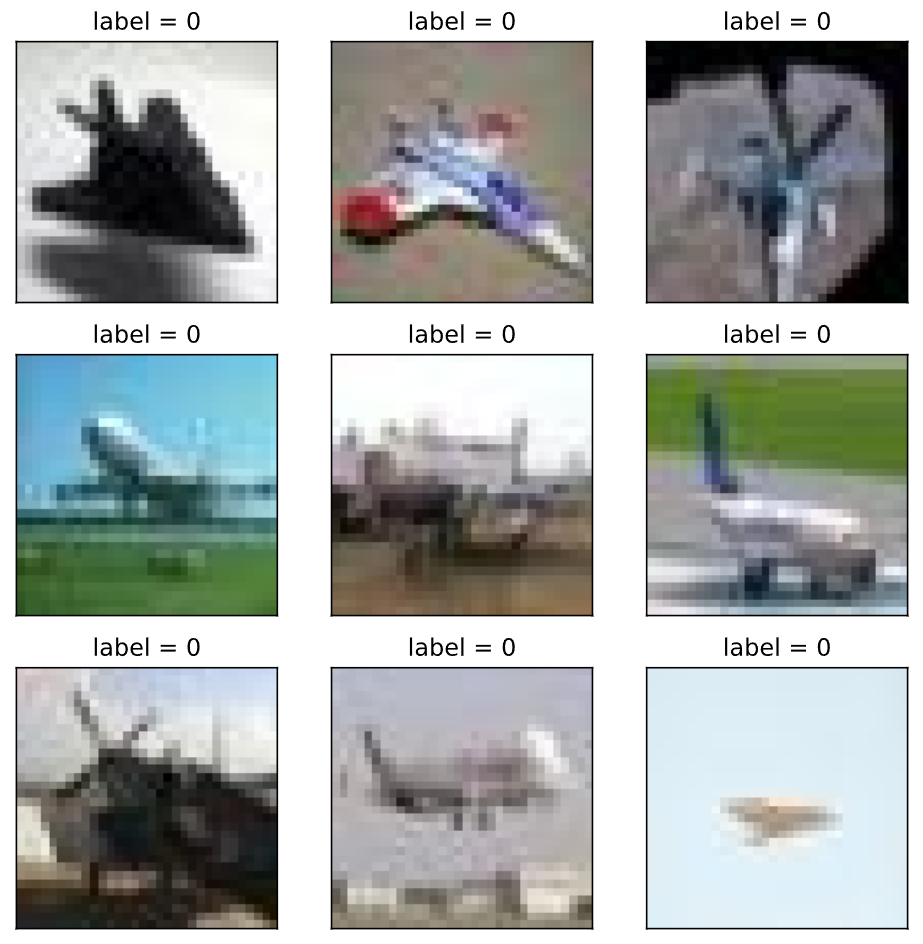

可以运行如下代码查看部分样本和 shape.

from matplotlib import pyplot as plt
plt.figure(figsize=(8,8))
for i in range(9):
    img,label = ds_train[i]
    img = img.permute(1,2,0)
    ax=plt.subplot(3,3,i+1)
    ax.imshow(img.numpy())
    ax.set_title("label = %d"%label.item())
    ax.set_xticks([])
    ax.set_yticks([])
plt.show()

for features,labels in dl_train:
    print(features.shape,labels.shape)
    break

torch.Size([50, 3, 32, 32]) torch.Size([50, 1])

Pytorch 的图片默认顺序是 Batch, Channel, Width, Height.

建立模型

Pytorch 通常有三种方式构建模型: 使用 nn.Sequential 按层顺序构建模型, 继承 nn.Module 基类构建自定义模型, 继承 nn.Module 基类构建模型并辅助应用模型容器进行封装, 此处选用继承 nn.Module 基类构建自定义模型.

class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=3,out_channels=32,kernel_size = 3)
        self.pool = nn.MaxPool2d(kernel_size = 2,stride = 2)
        self.conv2 = nn.Conv2d(in_channels=32,out_channels=64,kernel_size = 5)
        self.dropout = nn.Dropout2d(p = 0.1)
        self.adaptive_pool = nn.AdaptiveMaxPool2d((1,1))
        self.flatten = nn.Flatten()
        self.linear1 = nn.Linear(64,32)
        self.relu = nn.ReLU()
        self.linear2 = nn.Linear(32,1)

    def forward(self,x):
        x = self.conv1(x)
        x = self.pool(x)
        x = self.conv2(x)
        x = self.pool(x)
        x = self.dropout(x)
        x = self.adaptive_pool(x)
        x = self.flatten(x)
        x = self.linear1(x)
        x = self.relu(x)
        x = self.linear2(x)
        return x

net = Net()
print(net)

Conv2d: 二维卷积层, 把图片通过一组 filter 变换成新的多通道特征.

MaxPool2d: 池化层, 压缩图片数据, 保留重要信息.

Dropout2d: 丢弃层, 随机遮挡一部分数据, 迫使网络不过度依赖某几个通道, 而是学会更普遍的特征.

ReLu: 激活函数.

可以利用torchkeras.summary(net, input_data = features)总结网络结构, 输出如下.

--------------------------------------------------------------------------
Layer (type)                            Output Shape              Param #
==========================================================================
Conv2d-1                            [-1, 32, 30, 30]                  896
MaxPool2d-2                         [-1, 32, 15, 15]                    0
Conv2d-3                            [-1, 64, 11, 11]               51,264
MaxPool2d-4                           [-1, 64, 5, 5]                    0
Dropout2d-5                           [-1, 64, 5, 5]                    0
AdaptiveMaxPool2d-6                   [-1, 64, 1, 1]                    0
Flatten-7                                   [-1, 64]                    0
Linear-8                                    [-1, 32]                2,080
ReLU-9                                      [-1, 32]                    0
Linear-10                                    [-1, 1]                   33
==========================================================================
Total params: 54,273
Trainable params: 54,273
Non-trainable params: 0
--------------------------------------------------------------------------
Input size (MB): 0.000076
Forward/backward pass size (MB): 0.359627
Params size (MB): 0.207035
Estimated Total Size (MB): 0.566738
--------------------------------------------------------------------------

训练模型

和上次一样用仿照 Keras 风格的训练循环.

import os,sys,time
import numpy as np
import pandas as pd
import datetime
from tqdm import tqdm

import torch
from torch import nn
from copy import deepcopy

def printlog(info):
    nowtime = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')
    print("\n"+"=========="*8 + "%s"%nowtime)
    print(str(info)+"\n")

class StepRunner:	# 一个batch
    def __init__(self, net, loss_fn,
                 stage = "train", metrics_dict = None,
                 optimizer = None
                 ):
        self.net,self.loss_fn,self.metrics_dict,self.stage = net,loss_fn,metrics_dict,stage
        self.optimizer = optimizer

    def step(self, features, labels):
        # loss
        preds = self.net(features)
        loss = self.loss_fn(preds,labels)

        # backward()
        if self.optimizer is not None and self.stage=="train":
            loss.backward()	# 计算每个权重的梯度
            self.optimizer.step()	# 根据梯度更新权重
            self.optimizer.zero_grad()	# 清空梯度

        # metrics
        step_metrics = {self.stage+"_"+name:metric_fn(preds, labels).item()
                        for name,metric_fn in self.metrics_dict.items()}
        return loss.item(),step_metrics

    def train_step(self,features,labels):
        self.net.train() # 训练模式, dropout层发生作用
        return self.step(features,labels)

    @torch.no_grad()
    def eval_step(self,features,labels):
        self.net.eval() # 预测模式, dropout层不发生作用
        return self.step(features,labels)

    def __call__(self,features,labels):
        if self.stage=="train":
            return self.train_step(features,labels)
        else:
            return self.eval_step(features,labels)

class EpochRunner:	# 一个epoch(废话)
    def __init__(self,steprunner):
        self.steprunner = steprunner
        self.stage = steprunner.stage
    def __call__(self,dataloader):
        total_loss,step = 0,0
        loop = tqdm(enumerate(dataloader),total =len(dataloader),file = sys.stdout)
        for i, batch in loop:
            loss, step_metrics = self.steprunner(*batch)
            step_log = dict({self.stage+"_loss":loss},**step_metrics)
            total_loss += loss
            step+=1
            if i!=len(dataloader)-1:
                loop.set_postfix(**step_log)
            else:
                epoch_loss = total_loss/step
                epoch_metrics = {self.stage+"_"+name:metric_fn.compute().item()
                                 for name,metric_fn in self.steprunner.metrics_dict.items()}
                epoch_log = dict({self.stage+"_loss":epoch_loss},**epoch_metrics)
                loop.set_postfix(**epoch_log)

                for name,metric_fn in self.steprunner.metrics_dict.items():
                    metric_fn.reset()
        return epoch_log

def train_model(net, optimizer, loss_fn, metrics_dict,
                train_data, val_data=None,
                epochs=10, ckpt_path='checkpoint.pt',
                patience=5, monitor="val_loss", mode="min"):
    history = {}
    for epoch in range(1, epochs+1):
        printlog("Epoch {0} / {1}".format(epoch, epochs))

        # 1，train -------------------------------------------------
        train_step_runner = StepRunner(net = net,stage="train",
                loss_fn = loss_fn,metrics_dict=deepcopy(metrics_dict),
                optimizer = optimizer)
        train_epoch_runner = EpochRunner(train_step_runner)
        train_metrics = train_epoch_runner(train_data)

        for name, metric in train_metrics.items():
            history[name] = history.get(name, []) + [metric]

        # 2，validate -------------------------------------------------
        if val_data:
            val_step_runner = StepRunner(net = net,stage="val",
                loss_fn = loss_fn,metrics_dict=deepcopy(metrics_dict))
            val_epoch_runner = EpochRunner(val_step_runner)
            with torch.no_grad():
                val_metrics = val_epoch_runner(val_data)
            val_metrics["epoch"] = epoch
            for name, metric in val_metrics.items():
                history[name] = history.get(name, []) + [metric]

        # 3，early-stopping -------------------------------------------------
        arr_scores = history[monitor]
        best_score_idx = np.argmax(arr_scores) if mode=="max" else np.argmin(arr_scores)
        if best_score_idx==len(arr_scores)-1:
            torch.save(net.state_dict(),ckpt_path)
            print("<<<<<< reach best {0} : {1} >>>>>>".format(monitor,
                 arr_scores[best_score_idx]),file=sys.stderr)
        if len(arr_scores)-best_score_idx>patience:
            print("<<<<<< {} without improvement in {} epoch, early stopping >>>>>>".format(
                monitor,patience),file=sys.stderr)
            break
        net.load_state_dict(torch.load(ckpt_path,weights_only=True))

    return pd.DataFrame(history)

import torchmetrics

class Accuracy(torchmetrics.Accuracy):
    def __init__(self, dist_sync_on_step=False):
        super().__init__(dist_sync_on_step=dist_sync_on_step)

    def update(self, preds: torch.Tensor, targets: torch.Tensor):
        super().update(torch.sigmoid(preds),targets.long())	# 重写update函数, 用sigmoid把数字压缩到0~1之间

    def compute(self):
        return super().compute()


loss_fn = nn.BCEWithLogitsLoss()
optimizer= torch.optim.Adam(net.parameters(),lr = 0.01)
metrics_dict = {"acc":Accuracy(task='binary')}

dfhistory = train_model(net,
    optimizer,
    loss_fn,
    metrics_dict,
    train_data = dl_train,
    val_data= dl_val,
    epochs=10,
    patience=5,
    monitor="val_acc",
    mode="max")

评估模型

dfhistory 如下.

   train_loss  train_acc  val_loss  val_acc  epoch
0    0.489415     0.7691  0.332821   0.8540      1
1    0.344483     0.8530  0.440991   0.7675      2
2    0.339193     0.8565  0.288581   0.8860      3
3    0.294807     0.8776  0.272804   0.8900      4
4    0.249944     0.8997  0.223067   0.9150      5
5    0.212562     0.9115  0.238513   0.9040      6
6    0.219863     0.9117  0.231890   0.9055      7
7    0.231824     0.9038  0.213779   0.9070      8
8    0.213917     0.9132  0.276232   0.8860      9
9    0.209967     0.9150  0.202512   0.9160     10

使用模型

# 预测概率
y_pred_probs = predict(net,dl_val)
# 预测类别
y_pred = torch.where(y_pred_probs>0.5,
        torch.ones_like(y_pred_probs),torch.zeros_like(y_pred_probs))

保存模型

建议使用保存参数方式保存模型.

print(net.state_dict().keys())

torch.save(net.state_dict(), "./data/net_parameter.pt")

net_clone = Net()
net_clone.load_state_dict(torch.load("./data/net_parameter.pt",weights_only=True))

predict(net_clone,dl_val)

昨天出去玩了没看, 有上一篇的经验之后似乎理解的东西稍微多一点了.
